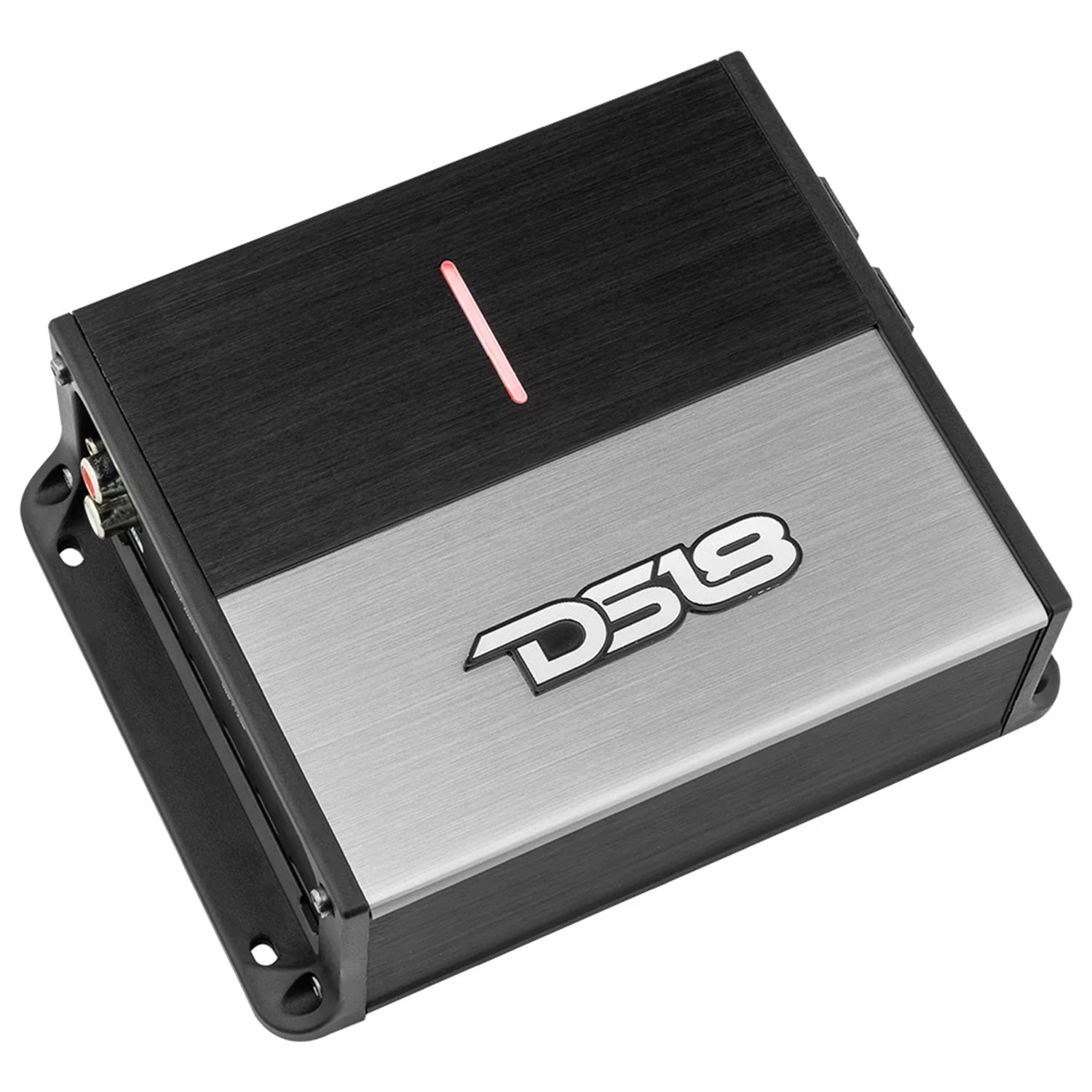

DS18 ION600.1D 1-Channel 600W @ 1-Ohm RMS Class D Full Range Compact Amplifier

Introducing the DS18 ION600.1D, a compact and powerful Full-Range Monoblock Class D Amplifier designed to enhance your car audio system with superior performance and efficiency. This digital micro amplifier delivers high power output with 200W @ 4-Ohm, 400W @ 2-Ohm, and 600W @ 1-Ohm, ensuring a premium listening experience. The adjustable audio settings, including a 45Hz Bass Boost up to 12dB, allow for customized sound. With safety features like thermal, overload, and short circuit protection, and a compact design for flexible installation, the DS18 ION600.1D is your perfect car audio upgrade.

Key Features:

• High Power Output: 200W @ 4-Ohm, 400 Watts @ 2-Ohm, and 600W @ 1-Ohm.

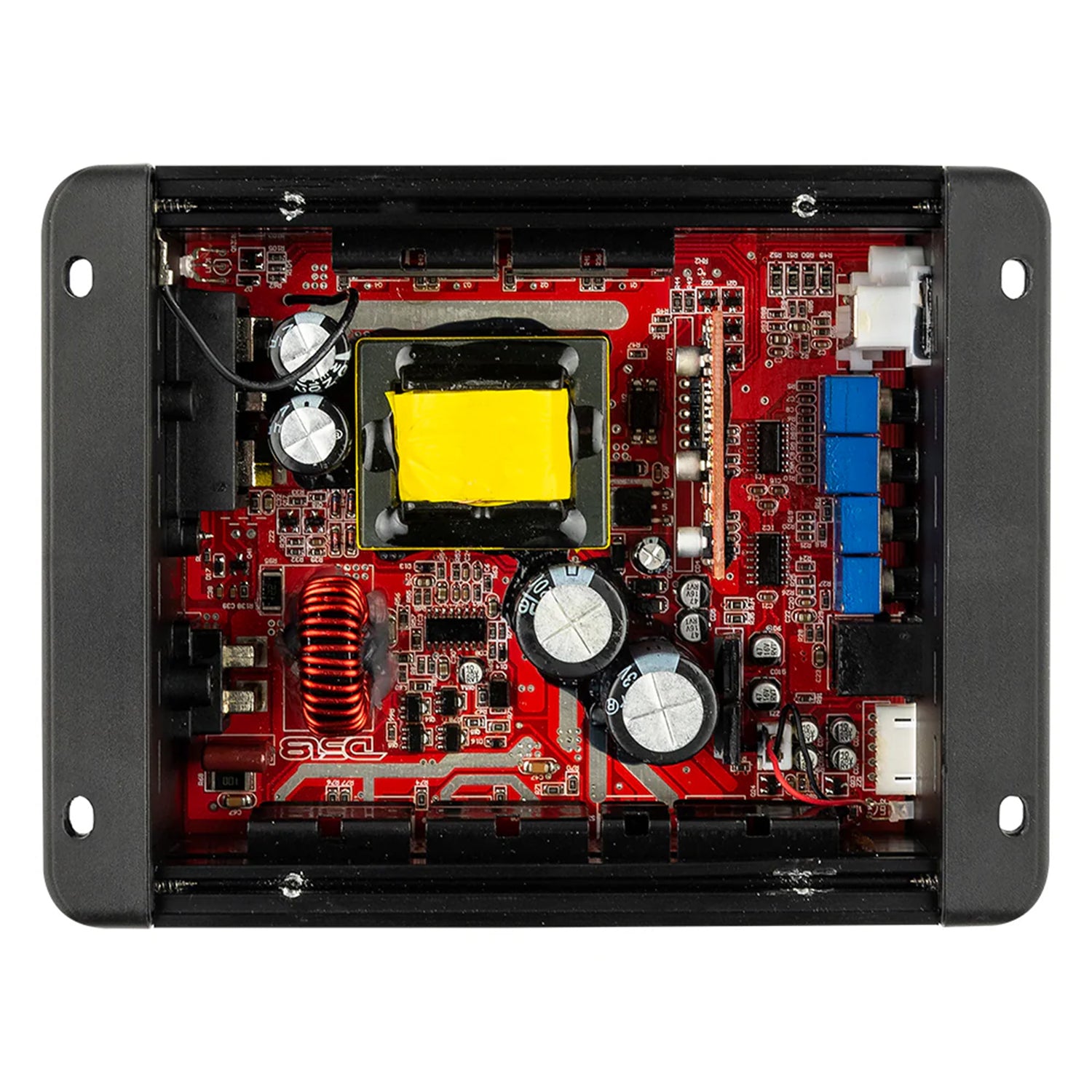

• Compact Design: The miniature size and surface mount component technology allow flexible installation in any build.
• Full Range Class D: Efficient digital design ensures high performance and minimal power consumption.
• Adjustable Audio Settings: Fully variable crossover switch for customizable audio settings and a 45Hz Bass Boost level adjustable up to 12dB.
• Safety Features: Includes power, protection, and clipping LED indicators along with short circuit thermal, DC offset, and high/low voltage protection.

Technical Data:

• SKU: ION600.1D
• Total Watts (Peak): 1800W
• RMS Power @ 4 ohm: 200W
• RMS Power @ 2 ohm: 400W

• RMS Power @ 1 ohm: 600W
• RMS Power @ 4 ohm Bridge: N/A

Audio Specifications:

• Frequency Response: 10Hz-20KHz
• Signal to Noise Ratio: >95dB
• Efficiency @ 4 ohm: 88%
• Damping Factor: 210
• Input Impedance: 27Kohms
• Channel Separation: N/A
• Total Harmonic Distortion (THD): 0.01%
• Low Level Input Range: 0.2-6V
• High-Level Input: Yes

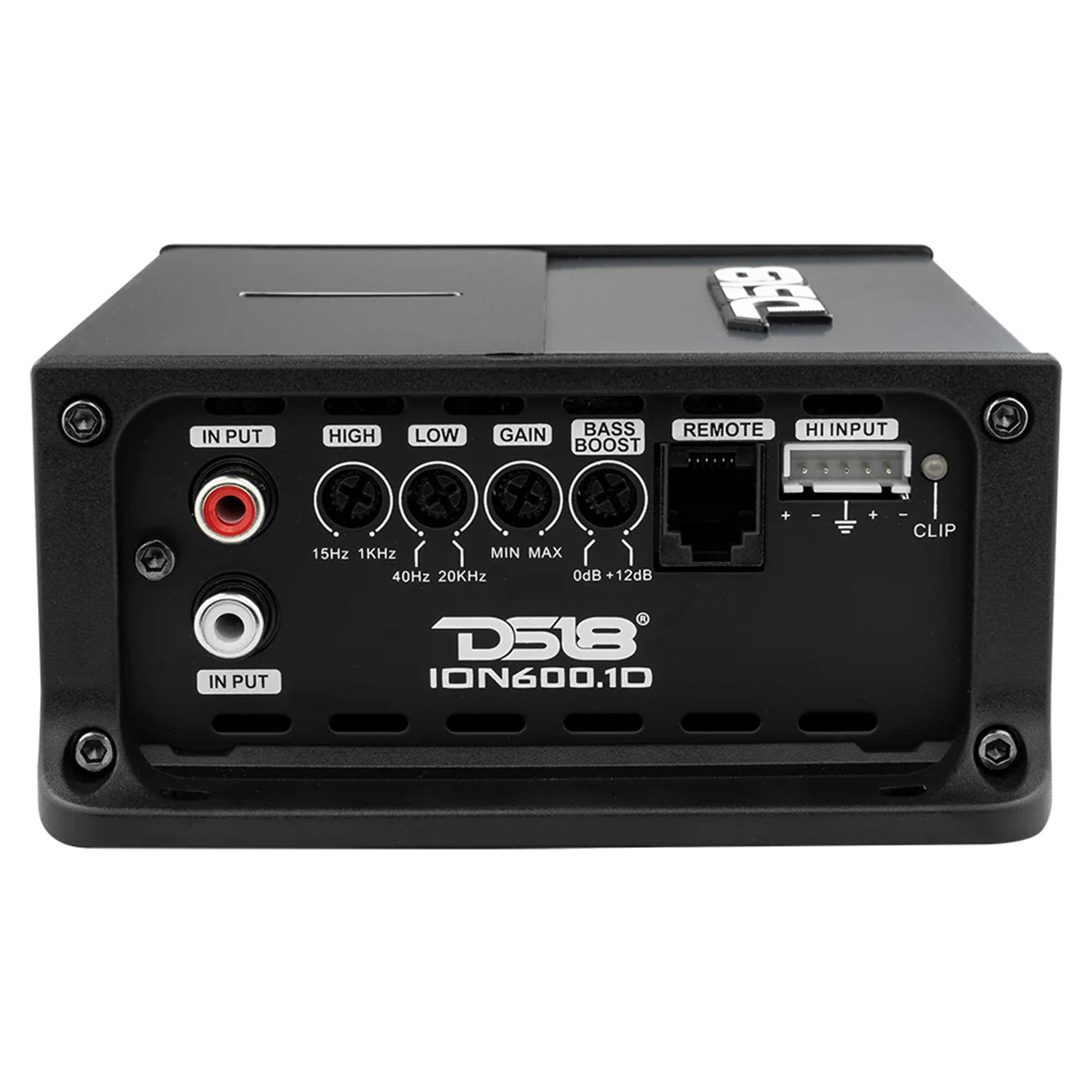

• Selectable X-Over: Band-Pass
• X-Over Filter Range: HP: 15Hz-1KHz / LP: 40Hz-20KHz
• Bass Boost Range: 0~12dB
• Bass Boost Frequency: 45Hz

Protection Features:

• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes

Design and Dimensions:

• Amplifier Class: Digital
• Amplifier Type: Full-Range Monoblock
• Number of Channels: 1
• Minimum Impedance: 1 Ohm
• LED Indicator: Power / Protect / Clipping

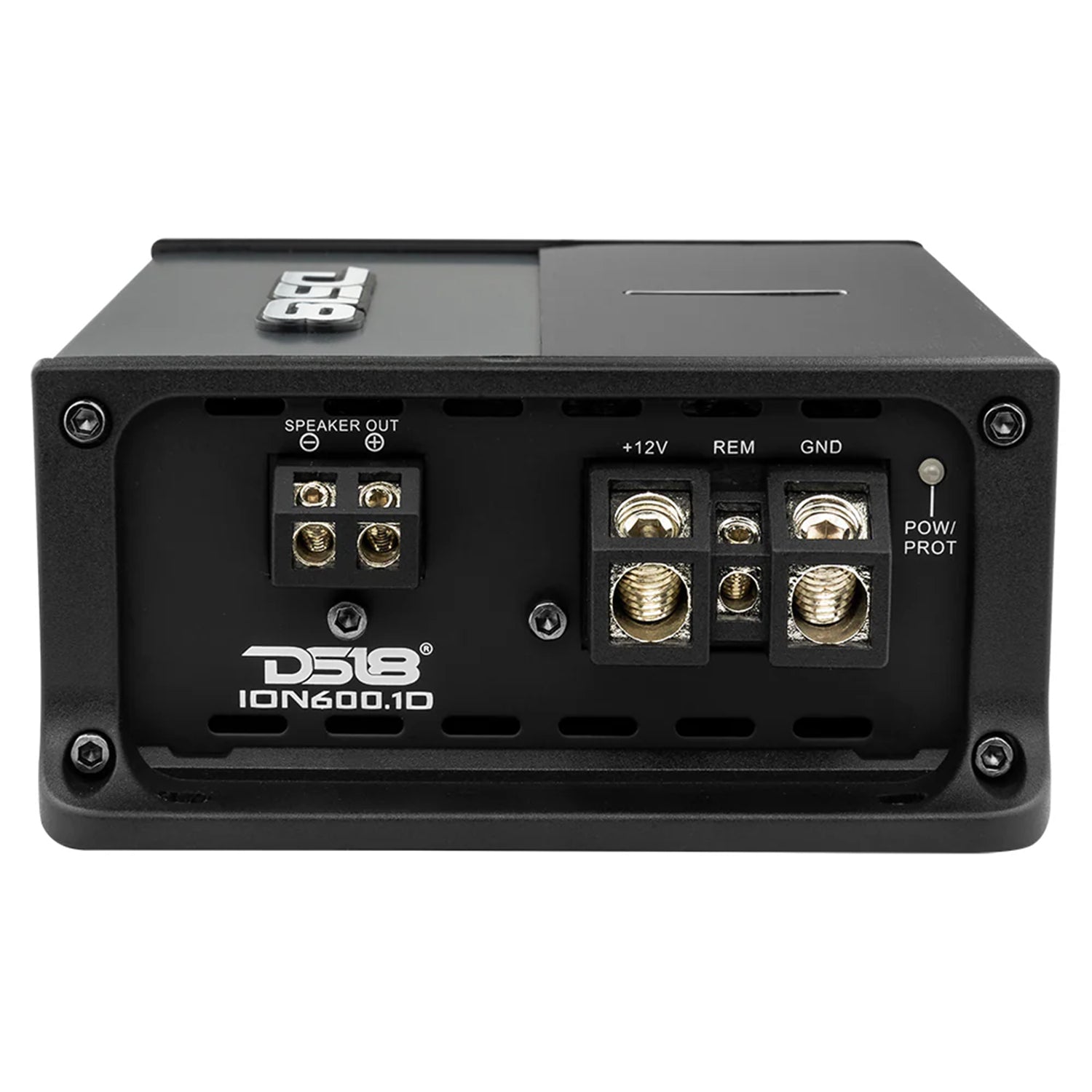

• Power Input Terminal Size: 4 AWG
• Fuse Size: 80A (external)

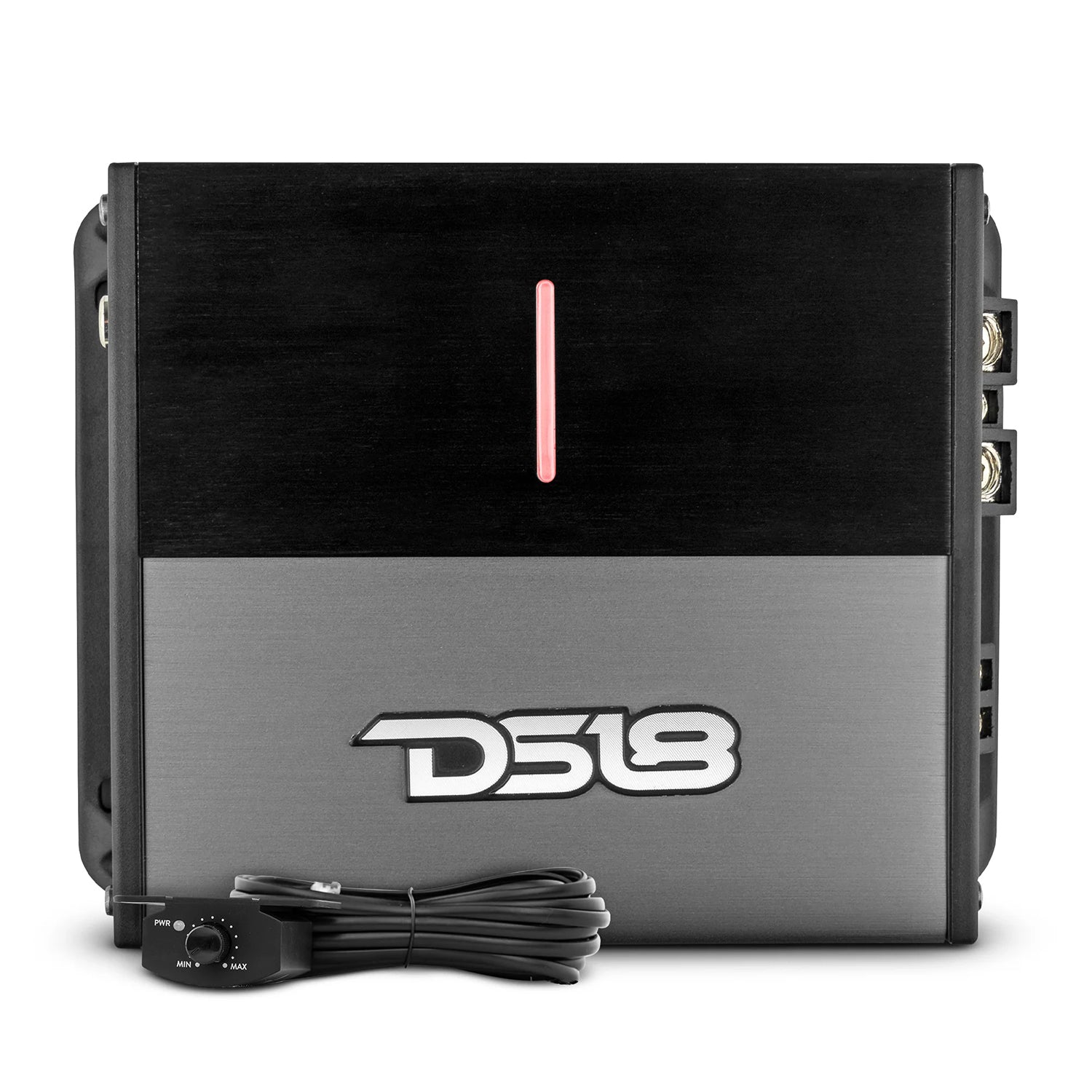

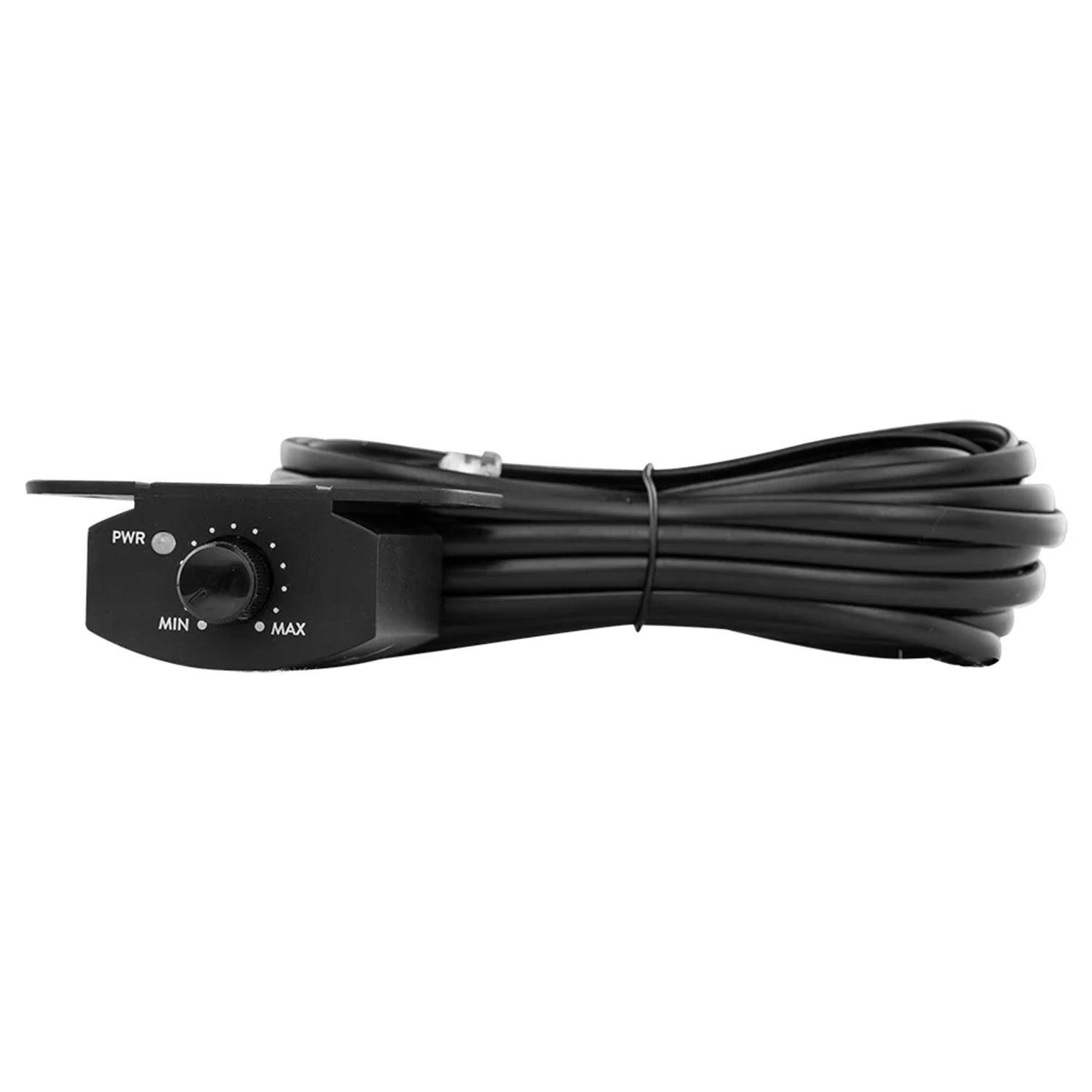

• Remote Level Control: Yes
• Cooling Fan: No
• Body Color / Finish: Aluminum Black / Silver

Extra Features:

• Hi-Level Speaker Connector: Yes
• Tiffany RCA Terminal: Yes
• LED Clip Indicator: Yes
• High-Efficiency Micro Digital Design: Yes

Measurements:

• Overall Length: 6.14" / 156mm
• Overall Width: 4.72" / 120mm
• Overall Height: 2" / 52mm
• Heatsink Length: 4.84" / 123mm

• Gross Single Unit Weight: 0.7Kg
