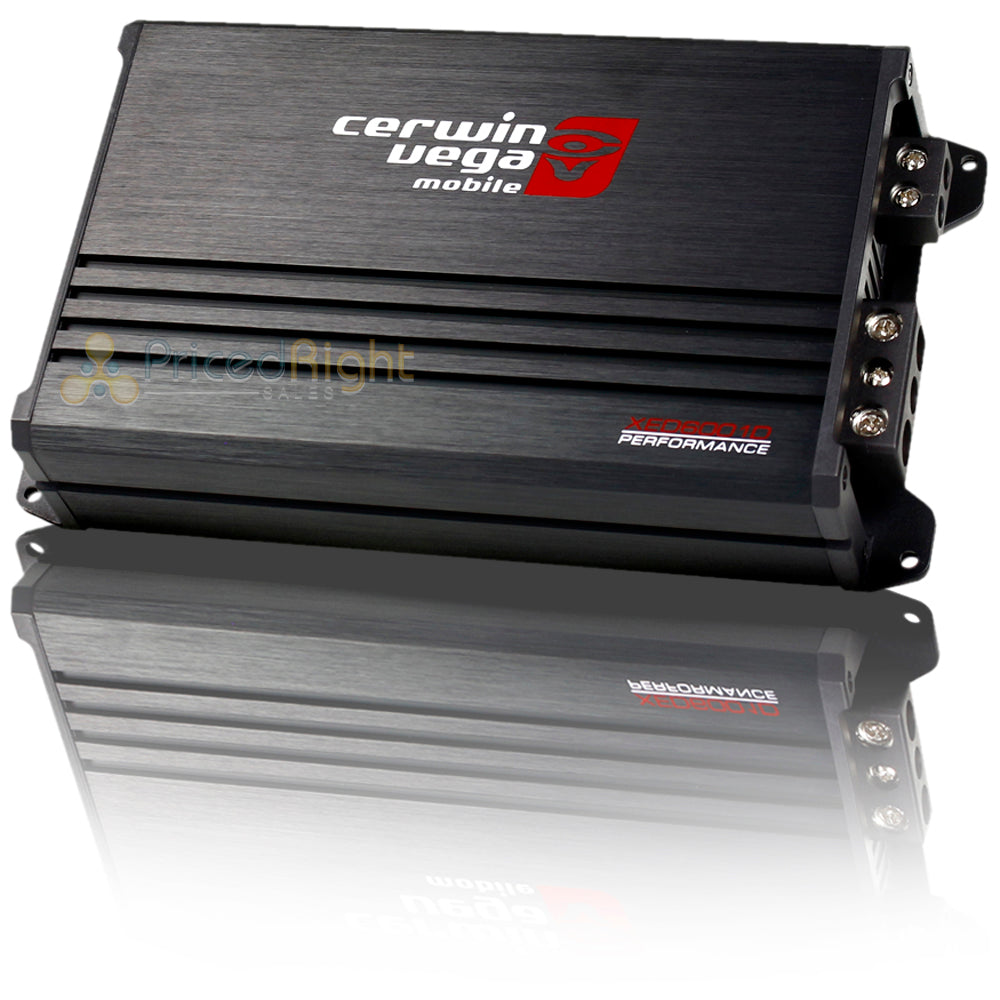

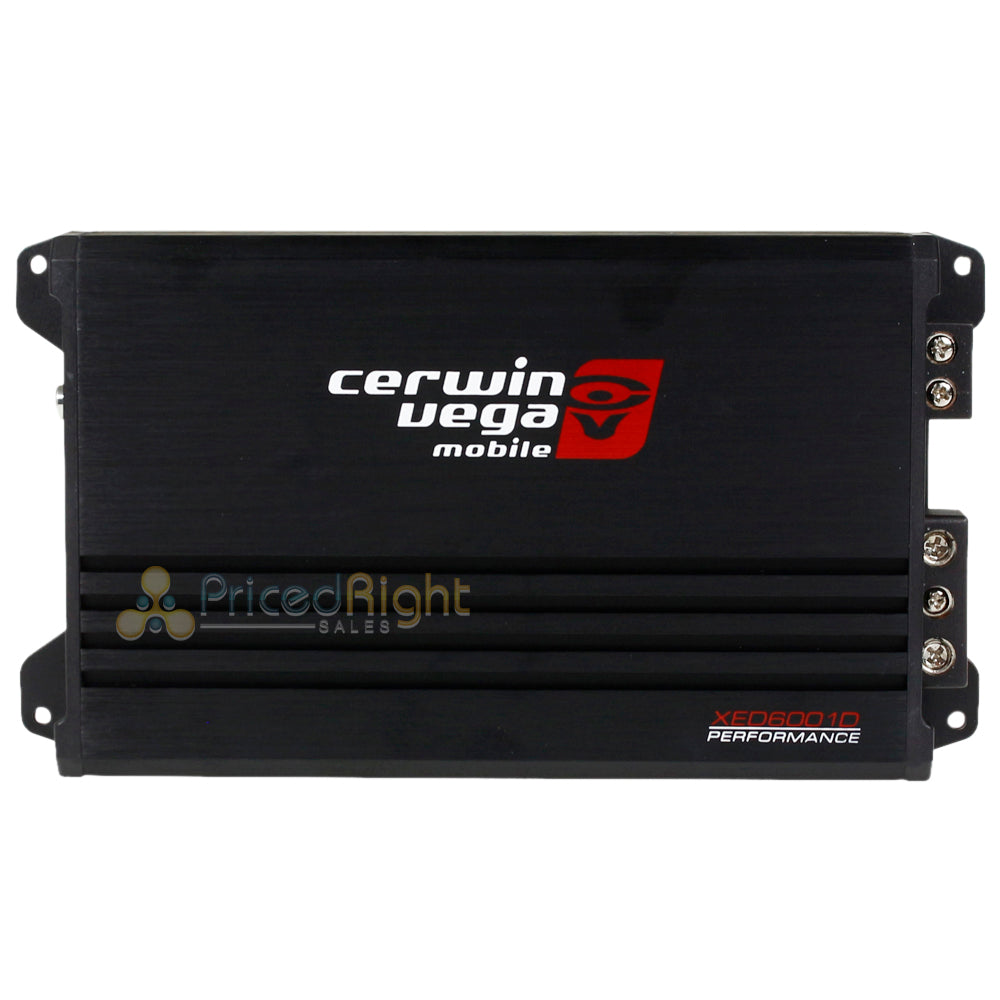

Cerwin Vega 800W Max Class D Monoblock 1 Channel Amplifier XED Series XED6001D

The Cerwin Vega XED6001D 1 Channel Amplifier is the perfect addition for anyone looking for amazing power in a compact design. The XED6001D features the latest high-efficiency digital Class D topology. This amp offers 800 Watts max in a compact design, giving you all the power you need without wasting space. And to top it all off, the XED6001D features an ambient backlit logo to be the perfect visual accent to your vehicle's audio system.

Features

• Latest High-Efficiency Class D Topology
• Compact Size with Ambient backlit logo
• RCA “Pass Thru” output for easy system expansion
• Fully Variable Crossovers (12dB per octave)
• Handles HI and LO level input to 12V
• 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 Ch mode
• Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

• 800W MAX Power
• 1 Channel Amplifier
• 600W x 1 @ 2Ω RMS
• 320W X 1 @ 4Ω RMS
• Power Supply: Full PWM
• Power Supply Threshold: 10.0DVC – 16.0DVC
• Idle Current: (0.7A)
• THD 4: (100Hz @4Ω) <0.1%
• S-N Ratio (A weighted @ 1W): -85dBA
• S-N Ratio (A weighted @ 1W): -101.1dBA
• Sensitivity-Low Input Level: 250mV – 6.0V
• Sensitivity-High Input Level: 1.1V ~>20.0V
• Impedance-Low Input Level: 20 KΩ
• Impedance-High Input Level: 100 KΩ
• Output Impedance: 2 Ω
• Damping Factor: (50Hz @ 4Ω) >70
• Bandwidth (-3dB): 10Hz-250Hz
• Crossover (-12 dB/ Oct): Variable Low Pass - 35Hz-250Hz
• Crossover (-12 dB/ Oct): Variable Sub-Sonic - 10Hz-50Hz
• Fuse Rating ATC (inside): 2 x 30A
• Dimensions (L x W x H): 7.1” x 4.7” x 1.8” (180.34mm x 119.38mm x 45.72mm)
