PRV Audio 10" Mid Range Speaker ALTO Series 650 Watts Max 8 Ohm 10W650A Single PRV Audio 10" Mid Range Speaker ALTO Series 650 Watts Max 8 Ohm 10W650A Single

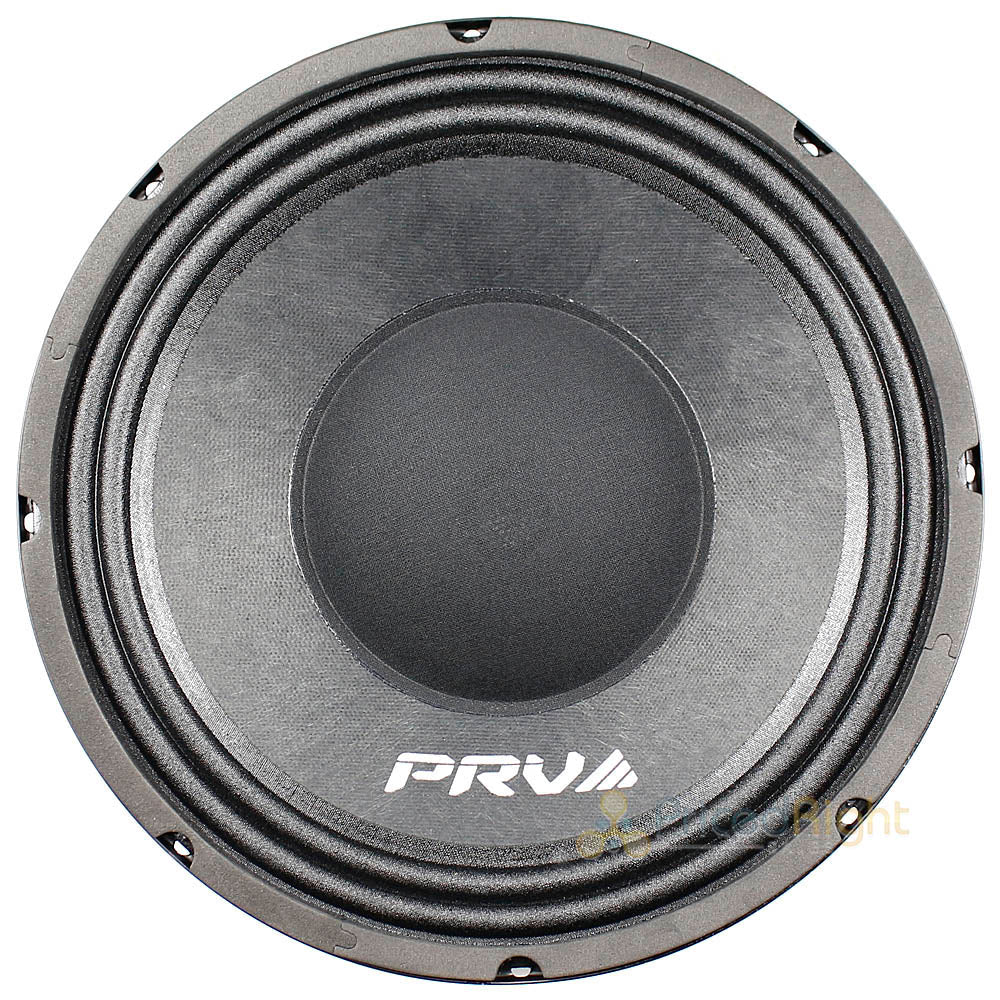

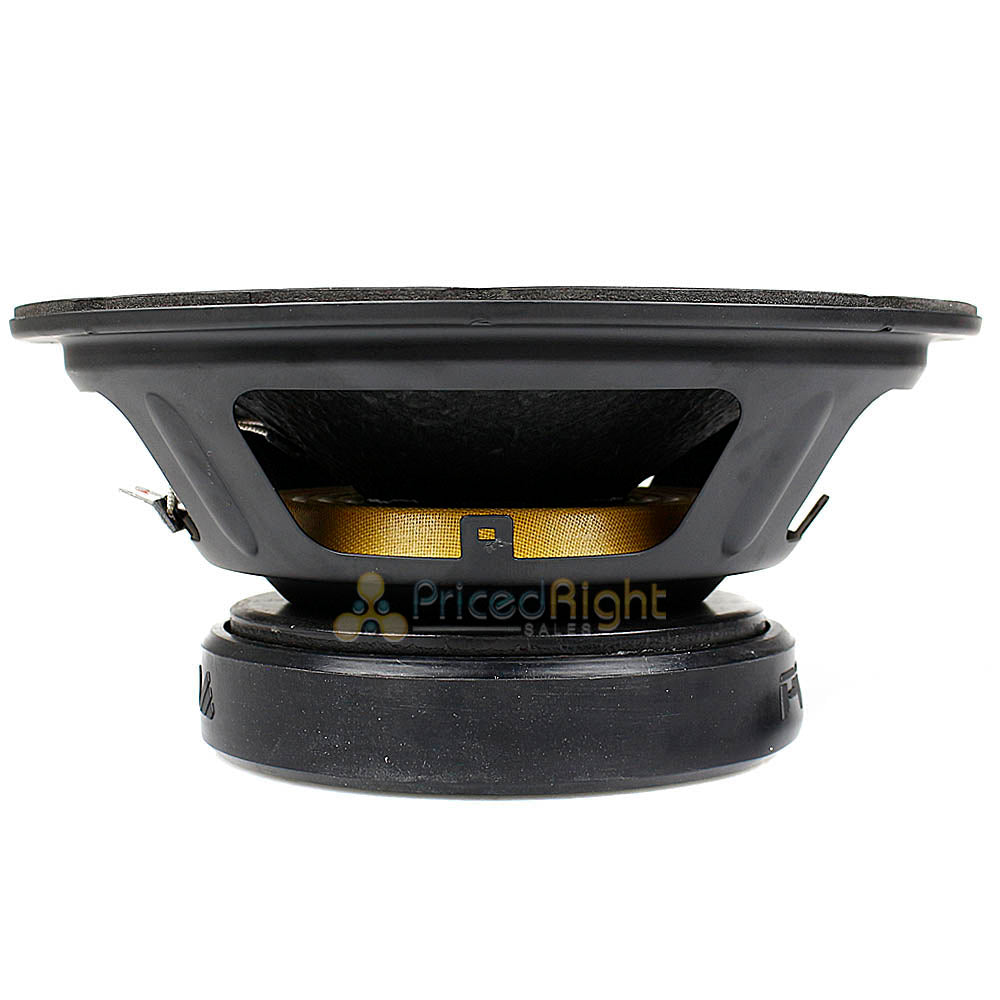

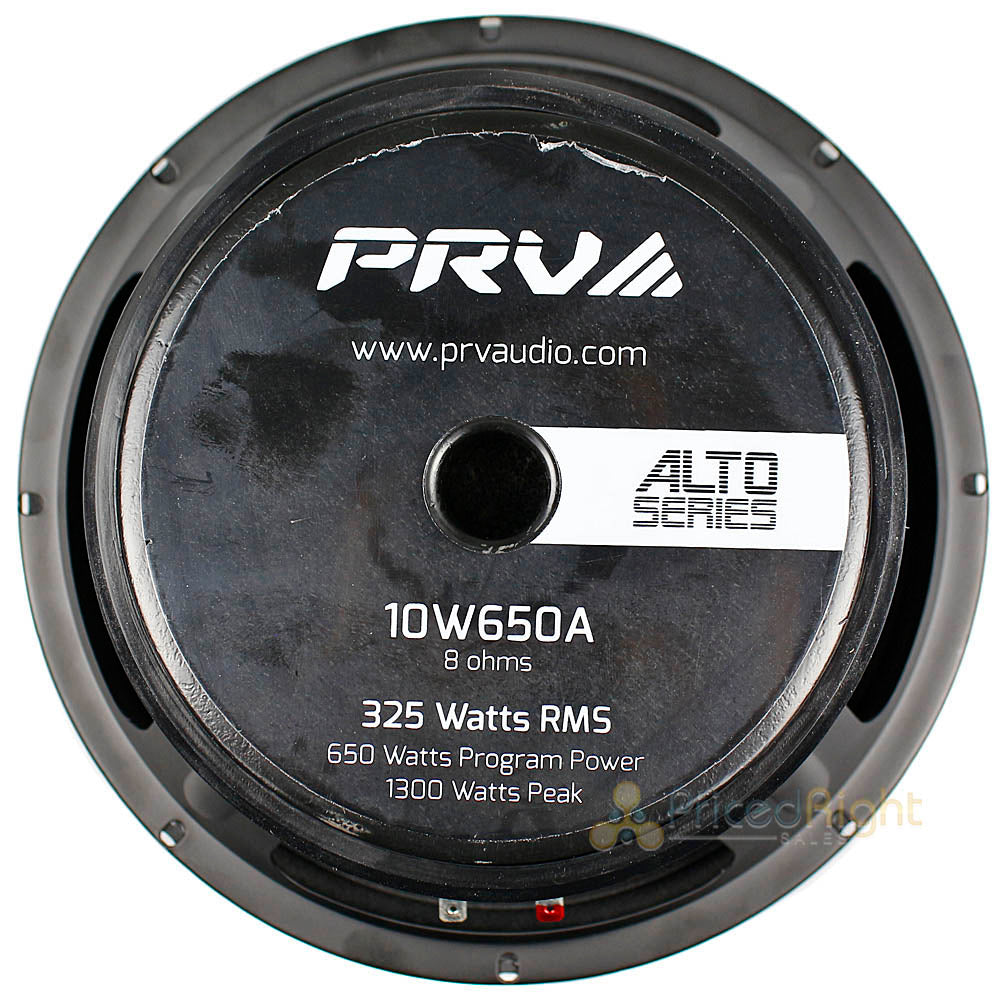

PRV 10" High Fidelity Loudspeaker Alto Series 10W650A

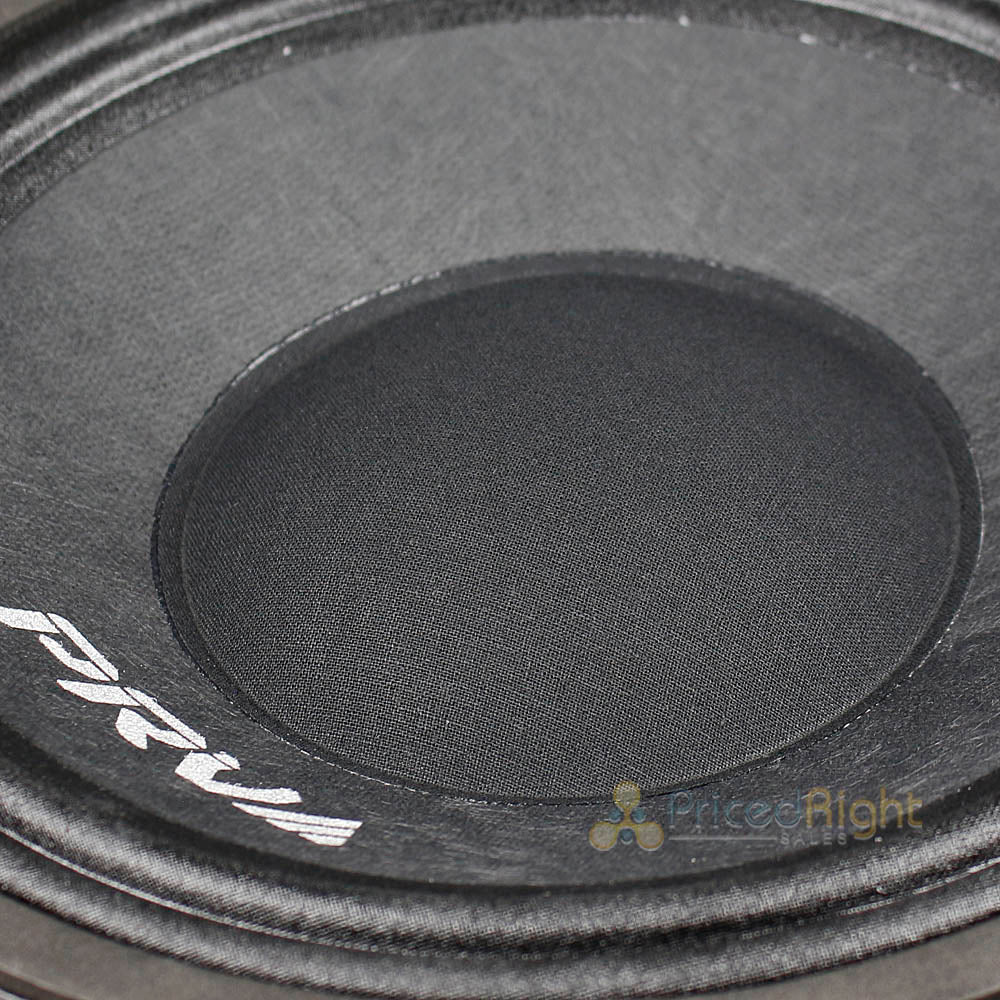

High fidelity meets high output — PRV Audio ALTO Series Woofers. PRV Audio’s Alto Series woofers were carefully crafted and voiced to create a natural, smooth sound while remaining dynamic. A special composite cone is built with non-pressed paper for reduced break-up and smooth sound. A unique, woven-cloth dust cap helps to achieve high sensitivity by reducing moving mass while helping to cool the voice coil.
Features
• Nominal Impedance: 8 Ohms
• Sensitivity (1W/1m): 97 dB
• RMS Power Handling: 325 Watts
• MAX Power Handling: 650 Watts
• Recommended Hi-Pass Crossover For Full Power Handling: 150 Hz -12db Per Octave Crossover
• Frequency Response at -10dB: 75 – 5,500 Hz
• Voice Coil Diameter: 2.5″ (65.5 mm)
• Voice Coil Wire: CCAW
• Voice Coil Winding Depth: 13.0 mm
• Former Material: Kapton
• Magnetic Gap Depth: 8.0 mm
• Frame Material: Stamped Steel
• Overall Diameter: 10.10” (257 mm)
• Front Mount Baffle Cutout: 9.25” ( 235 mm)
• Mounting Depth: 4.3” (110 mm)
• Overall Depth: 4.72” (120 mm)
